The low-temperature TERMATA LS heat generator is an autonomous, thermally insulated heater consisting of a heat exchange unit, an automatic block burner operating on natural gas or diesel fuel, and a low- or medium-pressure fan.

Recuperative-type air heaters are based on the principle of indirect heating, where heat is transferred from flue gases to the air through a wall separating these flows. The air heating system is used for heating industrial workshops, poultry farms, agricultural facilities, grain complexes, enterprises in the chemical and oil refining industries, shopping centers, and more. This type of heating is characterized by economical operating and initial costs.


Modification year — 2015
Download catalog.pdf
Таблица 1
Model LS 95 LS 110 LS 140 LS 170 LS 195 LS 260 LS 290 LS 360 LS 430 LS 490 LS 580 LS 650 LS 730
General Characteristics
Total Power, kW 85 100 120 150 180 230 260 300 390 450 500 550 600
Type of Fuel Diesel Fuel, Natural Gas
Maximum Diesel Fuel Consumption, kg/h 4.2 8.7 9.7 12.4 15.5 22 25.3 28.5 32.6 41.5 45.2 57 62.2
Maximum Natural Gas Consumption, m³/h 5.4 9.9 10.8 13.2 18.8 28.3 32.8 37.6 40.2 50.5 55 74.2 78
Power Supply, V/Ph/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Maximum Outlet Air Temperature, ºC 90 90 90 90 90 90 90 90 90 90 90 90 90
Efficiency, % 92 92 92 92 92 92 92 92 92 92 92 92 92
Air Output, m³/h 6500 8000 9000 11500 13500 18500 20000 23000 29000 35000 37000 42500 48000
Pressure, Pa 500 500 500 500 500 500 500 500 500 500 500 500 500
Consumed Electrical Power, kW 1.5 2.2 2.2 3.3 3.3 5 5 7.5 7.5 5 13 13 13
Таблица 2

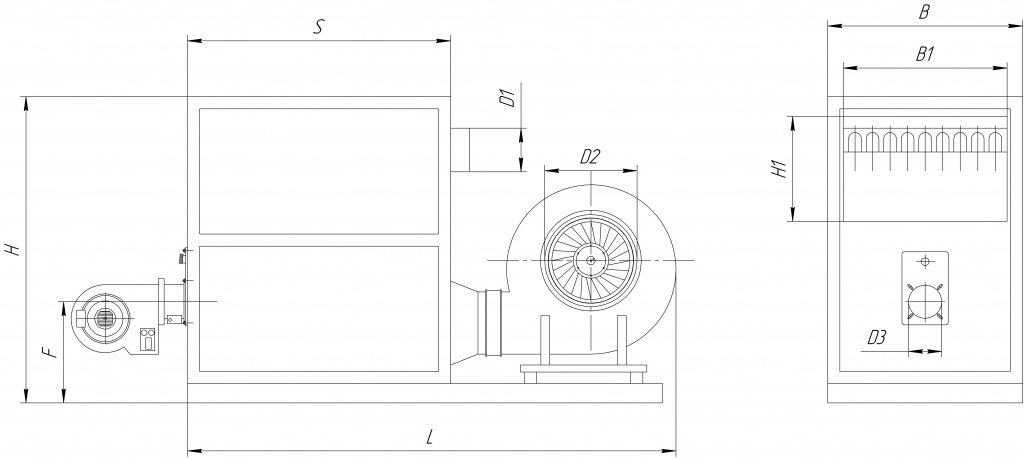

Model LS 95 LS 110 LS 140 LS 170 LS 195 LS 260 LS 290 LS 360 LS 430 LS 490 LS 580 LS 650 LS 730
Total Length, L 2040 2040 2560 2560 2920 2920 3775 3775 3775 3775 4250 4250 4250
Total Width, B 800 800 1025 1025 1025 1025 1025 1025 1250 1250 1250 1250 1250
Total Height, H 1260 1260 1260 1260 1260 1260 1260 1260 1845 1845 1845 1845 1845
D1 180 180 250 250 250 250 250 250 300 300 300 300 300
D2 400 400 630 630 630 630 630 630 800 800 800 800 800
D3 130 130 130 130 130 130 130 130 160 160 160 160 160
F 420 420 420 420 420 420 420 420 580 580 580 580 580
H1 616 616 845 845 845 845 845 845 1020 1020 1020 1020 1020
S 800 800 1250 1250 1750 1750 2200 2200 2200 2200 2700 2700 2700
B1 400 400 450 450 500 500 500 500 550 550 550 550 550
Таблица 3
The heat exchange unit is made of heat-resistant stainless steel of special grades, which enhances its resistance to high temperatures and corrosion. The TERMATA LS heat generator is an automated system with an intuitive control interface, operating without the need for constant personnel supervision. The automation allows monitoring of the operating cycle status on the device's screen, a PC, or in real-time online. The heat generator can be installed either indoors or outdoors. Thanks to its compact dimensions, it can be set up without complex installation work and relocated if necessary.
