Mobile heat generators

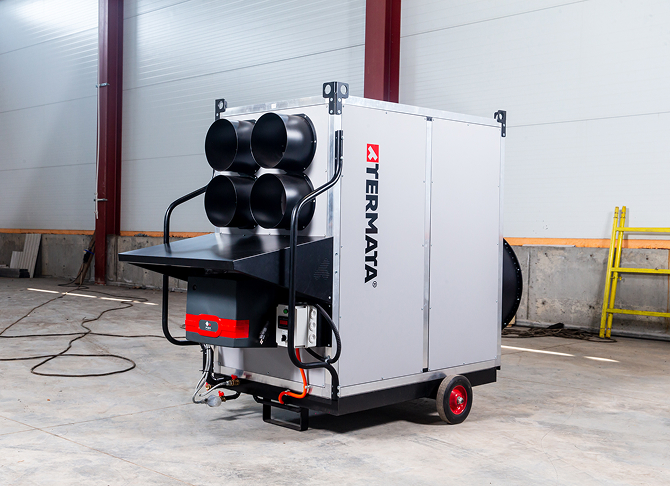

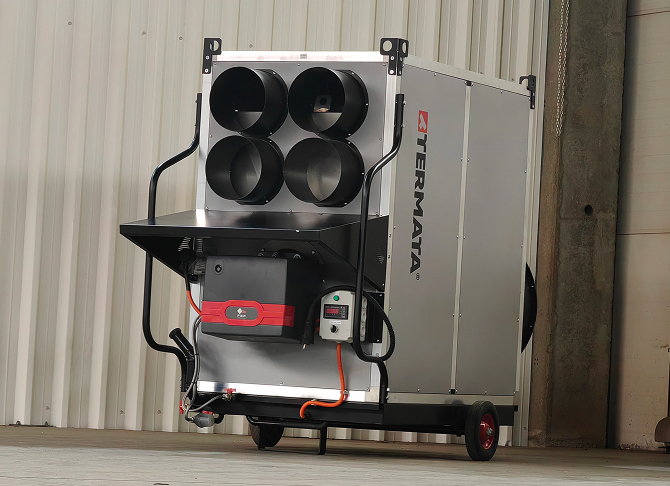

Termata LSM Mobile Air Heaters
Simplicity and efficiency in operation.
Easy and quick relocation of the air heater.
Ability to heat local workplaces and zones without heating the entire premises, as well as optimal temperature distribution.
Automation allows control and monitoring of the operating cycle status in real-time via a mobile application.
- Таблица 1
Characteristics LSM 100 LSM 150 LSM 200 Thermal power, kW 100 150 220 Efficiency, % up to 92 up to 92 up to 92 Maximum fuel consumption, diesel, kg/h 9.8 15 20 Max. outlet air temperature, ˚C 90 90 90 Temperature increase ∆t, ˚C 45 45 45 Power supply, V/Ph/Hz 220/1/50 220/1/50 220/1/50 Air flow, m³/h 6000 9000 12500 Outlet air pressure, Pa 500 500 500 Electrical power consumption, kW 2.5 3 3.5 Weight, kg up to 265 up to 300 up to 340 - Таблица 3
- The design of the air heater ensures:
- Convenience of burner removal for repair or replacement of its fast-wearing parts; Access for replacing the fan motor;
- Possibility of compensating for deformation of elements subjected to thermal impact;
- Possibility of sampling combustion products in the outlet nozzle.
Reliability indicators of air heating installation:
- Maximum operating time of the air heater – at least 600 hours;
- Average burner lifespan (liquid and gas fuel) before major repair or decommissioning due to heat resistance – at least 18,000 hours.
- Average lifespan of electrical automation components of the burner, except for components intended for protective shutdown – at least 100,000 cycles.
- Average lifespan of electrical automation components of the burner intended for protective shutdown – at least 5,000 cycles.
Service life before write-off of the air heater:
- for gas air heaters – at least 7 years;
- for liquid fuel air heaters – at least 6 years.
The air heater is equipped with:
- a device for monitoring the temperature of the heated air mixture at the outlet;
- automation for regulation and safety, ensuring the maintenance of the set air temperature and the ability to operate the air heater with the burner turned off.
Characteristics LSM 100 LSM 150 LSM 200 Thermal power, kW 100 150 220 Efficiency, % up to 92 up to 92 up to 92 Maximum fuel consumption, diesel, kg/h 9.8 15 20 Max. outlet air temperature, ˚C 90 90 90 Temperature increase ∆t, ˚C 45 45 45 Power supply, V/Ph/Hz 220/1/50 220/1/50 220/1/50 Air flow, m³/h 6000 9000 12500 Outlet air pressure, Pa 500 500 500 Electrical power consumption, kW 2.5 3 3.5 Weight, kg up to 265 up to 300 up to 340
- The design of the air heater ensures:
- Convenience of burner removal for repair or replacement of its fast-wearing parts; Access for replacing the fan motor;
- Possibility of compensating for deformation of elements subjected to thermal impact;
- Possibility of sampling combustion products in the outlet nozzle.
Reliability indicators of air heating installation:
- Maximum operating time of the air heater – at least 600 hours;
- Average burner lifespan (liquid and gas fuel) before major repair or decommissioning due to heat resistance – at least 18,000 hours.
- Average lifespan of electrical automation components of the burner, except for components intended for protective shutdown – at least 100,000 cycles.
- Average lifespan of electrical automation components of the burner intended for protective shutdown – at least 5,000 cycles.
Service life before write-off of the air heater:
- for gas air heaters – at least 7 years;
- for liquid fuel air heaters – at least 6 years.
The air heater is equipped with:
- a device for monitoring the temperature of the heated air mixture at the outlet;
- automation for regulation and safety, ensuring the maintenance of the set air temperature and the ability to operate the air heater with the burner turned off.
